Precise Rotation Stages
Features
Item Number: WN04RM50
Platform: Ø50mm (Ø1.97")
Adjustment:
• 360° Continuous Motion
• Radial Scale with Marking Every 2°
Clear Aperture: M52x1.0, Ø50.8mm
(Ø2") of Mirror Available
Actuator Type: Friction Transmission
Max Load Capacity (Horizontal): 0.5.0kg (1.10lbs)
Max Load Capacity (Vertical): 0.5kg (1.10lbs)
Weight: 0.36kg (0.79lb)
Material: Aluminum Alloy
Finish: Black-Anodized
Specifications
|
Model |
WN04RM50 |
|
||
|
Stage Diameter |
Φ50mm |
|||
|
Actuator Type |
Friction Transmission |
|||
|
Travel |
360° |
|||
|
Graduations |
2° |
|||
|
Minimum Readout (Resolution) |
2° |
|||
|
Minimum Adjust Distance |
15’ |
|||
|
Load Capacity |
0.4kg |
|||
|
Central Aperture |
M52×1 |
|||
|
Surface Roundness |
80μ |
|||
|
Transversal Deviation |
80μ |
|||
|
Parallelism |
60μ |
|||
|
Weight |
0.36kg |
|||
|
Material |
Aluminum Alloy |
|||
|
Finish(Surface Treatment) |
Black-anodized |

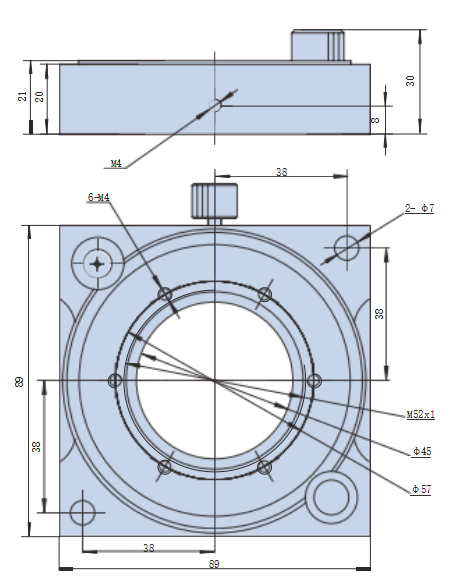

Drawing
