Motorized Goniometric Stages Goniometer Platform ±10°

Short Description:

Item Number  WN01GA10
Rotation Range  ±10°
Platform  65mm × 65mm (2.56″ x 2.56″)
Worm Gear Ratio  352:1
Point of Rotation  75mm (2.95″) ±0.2mm/0.0079″

Product Detail

Product Tags


Design Resolution:
• 18"(Approx.), Non-MS Driver
• 1"(Approx.), 20MS Driver
Max Velocity: 7°/sec
Bi-directional Repeatability: ±4" Absolute On-Axis Accuracy: ±9" Backlash: ±4"
The Fluctuation Distance to Point of Rotation from Top Surface will be less than 0.03mm. Limit Switches are Existing

● Standardly equipped with stepper motor and RS232 interface, the company's independently developed WNSC series motion controller can realize automated control
● The rotating shaft system is precision processed using multiple processes, with high matching accuracy, large load-bearing capacity and long service life.
● Using a precision-matched worm gear structure, the movement is comfortable and can rotate in any forward and reverse directions with minimal backlash.
● Exquisitely designed backlash elimination structure, which can adjust the backlash gap caused by long-term use
● The special structural design ensures extremely low deflection and tilt of the corner table, making the movement more stable.
● The scale ring on the periphery of the table is a laser-engraved ruler. The ruler can rotate relative to the table to facilitate initial positioning and reading.
● The stepper motor and worm are connected through imported high-quality elastic couplings, with synchronized transmission and good depolarization performance, which greatly reduces eccentric disturbance and has low noise.
● The electric corner table can be used horizontally or vertically, and can be combined with other types of tables to form a multi-dimensional electric adjustment table.
● The electric angle tables are designed in pairs and can be stacked or used alone. The two rotation radii are carefully designed. After superposition, they can rotate orthogonally in two dimensions around a total point.
● Has limit function, initial zero function, replaces servo motor, installs rotary encoder, accepts product modification and customization




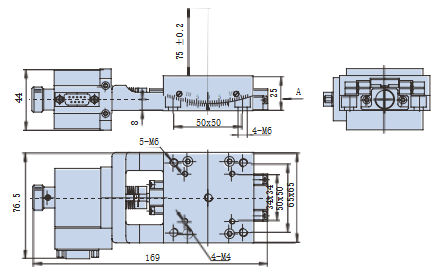

Angel Range


Table Size


Transmission Ratio


Height of Rotation Stage

75 mm±0.2 mm

Actuator Type

Worm Gear

Travel Guide

Crossed-roller Guide

Stepper Motor(1.8°)


Base Material

Aluminum Alloy

Surface Treatment


Load Capacity





≈0.005°≈18″(non MicroStep)

≈1″(20 MicroStep Driver in use)

Rotation Center Deflection Accuracy

0.03 mm





Positional Accuracy




Lost Motion


Key Features
  • ±10° transverse axis rotation with maximum free access to the rotating platform
  • Nested cradles provide orthogonal rotation about the same point
  • Precision machined ball bearing races assure smooth motion and high stability
  • Precision ground worm gear provides 0.005° resolution
  • Vacuum compatible versions up to 10-6 hPa
